Metallizing Equipment, MEC Jodhpur

Model: 99/600

The MEC Arc Spray Unit; Model: 99/600 is a reliable and robust system that has the following features

This system is designed to process all conductive wires relevant to thermal spray, solid wires, and cored wires.
This can be integrated with any external control system like PLC, Robot etc.
This system is equipped with a special anti-spattering mechanism that prevents popping and sticking of the wires in the nozzle at the time of gun start
This system is designed to process all conductive wires relevant to thermal spray, solid wires, and cored wires.
New technology of the power source is a combination of advanced control and supply circuits that deliver stable voltage to wire and allow the system to spray any conductive wire at the lowest possible voltage. This increases energy efficiency.
High-Velocity Arc Spray (HVAS) Technique which is useful to get low porosity, high-quality coating at the most economical cost.
Simple and low-cost operation, with lesser consumption of spare parts

ARC Spray 99/600 System consists of the following components

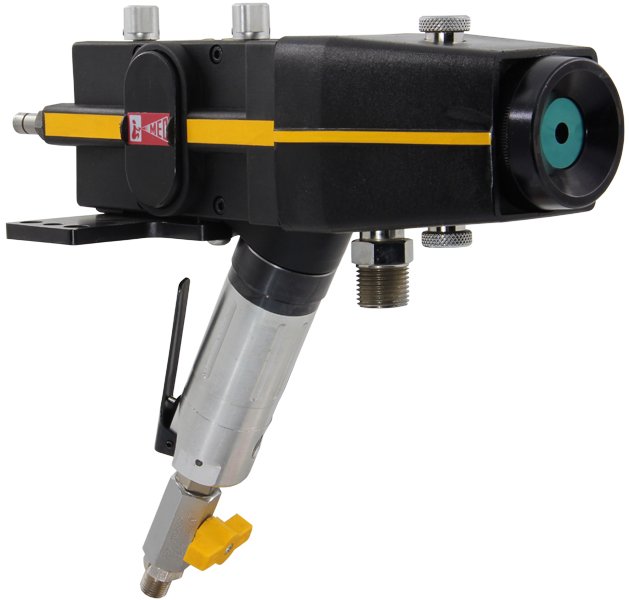

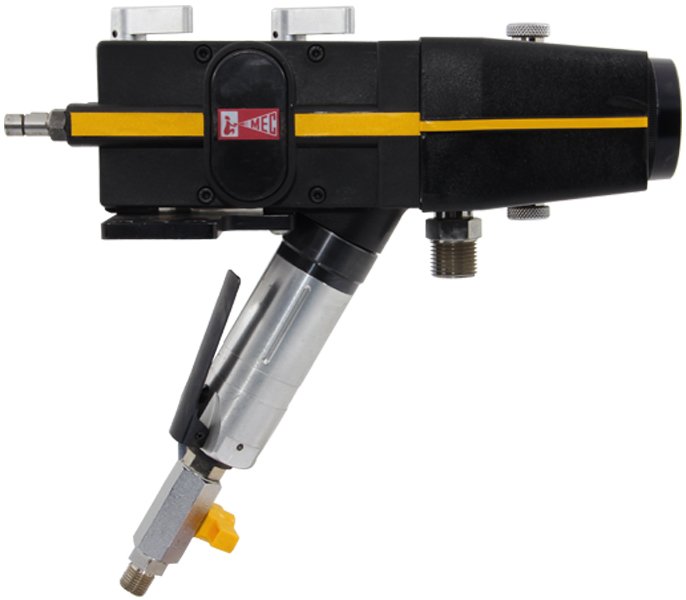

ARCJET-99 Gun with Air-Cooled Arc Head (Patented)
Interconnecting Hoses & Cables
Portable Wire Feed & Gun Stand; Model : SWF-011

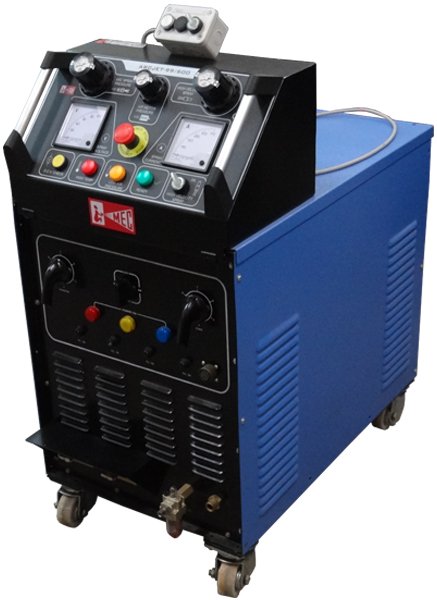

Power Source with in-built Control Panel; Model : P-600

Technical Specification

Wire Feed	By Air Motor Fitted in the Gun
Wire Size Range	1.6-3.17 mm
Weight of Gun	3.35 Kg
Power Requirement	25Kw
Current	600 Amps at 75% duty cycle.. 450 Amps for continuous operation
Max. Ambient Temp. Ratings Apply	50°C
Air Requirement	70 cfm free air delivery (FAD) at 90 psi air pressure

Optional Accessories

70° Spray Head

This head delivers the spray pattern at 70 Deg sideways instead of straight spray. This is useful for hard to reach location in complex geometries.

Extension Nozzle for inside spray

Minimum ID	100mm or 4 Inch
Available Length	12 Inch, 24 Inch and 36 Inch
Wire Size	1.6mm

Shroud Nozzle

Shroud Nozzle	This is designed to make a shroud of Inert gas around the ARC Spray Flame to avoid the contact of atmospheric oxygen. Using this the oxide content in the coating can be minimized.
