Shot Peening Explained: Process, Benefits & Applications

Shot peening is a cold working process to induce compressive stress on the surface of a material with sphere shots of steel, ceramic or glass media pneumatically propelled at relatively high velocities. These shot particles create a series of overlapping dimples on the material's surface which put the upper layers of the material into compression, and help to prevent fatigue failure in the material.

CNC SHOT PEENING MACHINE

MEC CNC Peening Machine

MEC CNC peening machine is designed for effective peening on components used in Aerospace, Aero engine components, Oil & gas, Gas turbine, Automotive, etc applications and is compliant with SAE AMS-2432, MIL-S-13165 standard & all major OEM computerized peening specifications. To generate the controlled compressive stress to the surface and to enhance the surface properties, increase fatigue strength by creating small pores, increase life of components and prevent galling, fretting, cracking & corrosion

Customization is possible with different variants suitable for suction blasting, pressure blasting and wet blasting

Standard

2-axis servo controlled reciprocation
Variable speed turntable rotation
Work car with manual winch for ease of job loading approach
High volume pressure tank for long duration peening
Quick change & accurate positioned 6 peening nozzles

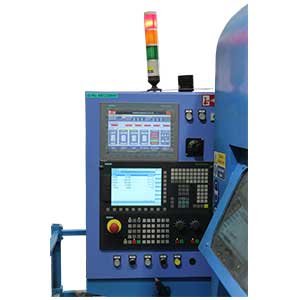

Colored touch screen HMI &Siemens PLC panel
Efficient reclaimer with screening

Optional

Automatic shot peening media adder
Closed loop air pressure control
Magna valve for media flow control
Magnetic separator
Rotary lance drive
Integrated media flow sensor
Efficient reclaimer with screening
Automatic media calibration unit.
Coverage checker
Spiral type shot separator
Rotary separator
Almen strips and almen strip mounting block
Vibratory sieve classifier unit
Motorized work car movement

ROBOTIC SHOT PEENING MACHINE

MEC Robotic Shot peening machine is designed for effective peening on components used in Aerospace, Aero engine components, Oil & gas, Gas turbine, Automotive, etc applications and is compliant with SAE AMS-2432, MIL-S-13165 standard & all major OEM computerized peening specifications. To generate the controlled compressive stress to the surface and to enhance the surface properties, increase fatigue strength by creating small pores, increase life of components and prevent galling, fretting, cracking & corrosion

Customization is possible with different variants suitable for suction blasting, pressure blasting and wet blasting

Standard

6-axis fanuc robotic gun manipulation
Door mounted turntables
Turntable drive synchronized as 7th axis of robot.
3 Jobs can be peened simultaneously
Very high production machine
Quick clamping/de-clamping pneumatic fixtures
Vibratory sieve classifier unit for size classification
Spiral type separator for shape classification
Quick change & accurately positioned 4 peening nozzles
Colored touch screen HMI & Siemens PLC panel
Mechanical grit recovery system
Easy part fixture change over
Closed loop air pressure regulator
Shot flow control magna valve
Dual pressure chamber for continuous peening

Optional

Automatic shot peening media adder
Magnetic separator
Rotary lance drive
Integrated media flow sensor
Automatic media calibration unit.
Automatic nozzle changing mechanism
Coverage checker
Rotary separator 
Almen strips and almen strip mounting block
Motorized work car movement

Industry wise application

Aircraft engine components such as Turbine (Fan and Compressor) Discs, IGV blades, Drums, Spinners, Engine Discs, Blisks, rotors and shafts
Aerospace structural components range from very large wing ribs, spars, wing skins and undercarriage components such as gear ribs, linkages, hydraulic cylinders and bolts, as well as landing gear wheels
Turbine engine components. Components which often require the shot peen process include: spinners, drums, shafts, blades and stators
Different automotive application such as Crankshafts, Gear wheels, Connecting rods, Automotive gear parts, Coil springs Suspension springs, Piston head, connecting rod, crank shaft etc
Medical device and components such as Bone screws, dental implants, hip impllant and knee replacement components
Engineered components in the oil and gas industries such as API thread on drill components, drill bits, shafts etc
Power generation turbine components
Mining industry and much more
